100 KVA Ike Lines na Transformers-13.8 / 0.24 / 0.12 KV|Guyana 2025

01 Izugbe

1.1 Nkọwa oru ngo

100 kVA eriri ọkụ na transformers ka ebugara Guyana na 2025. Ike nke transformer bụ 100 kVA na ONAN jụrụ oyi. The elu voltaji bụ 13.8 kV na ± 2 * 2.5% tapping nso (NLTC), ala voltaji bụ 0,12 / 0,24 kV, ha guzobere a vector otu Ii0.

A na-eji eriri ọkụ bụ 13.8kV rụọ ọrụ eletriki eletrik 100kVA na ihe ntụgharị ọkụ na voltaji nke abụọ nke 0.12/0.24kV, ahaziri maka ngwa ngwa n'elu grid- voltaji. Ewuru ya na nnukwu-arụmọrụ laminated silicon steel core na premium conductive windings, ọ nakweere mmanụ akpọchiri nke ọma-juputara imewe na ikuku jụrụ oyi (ONAN), na-eme ka nrụpụta voltaji kwụsie ike, ultra{8}} obere enweghị- ibu & ibu ibu, yana ntachi obi siri ike.

Emepụtara ya na nrube isi zuru okeIEEE C57.12.00na nkọwapụta ụlọ ọrụ ANSI, ihe ngbanwe ahụ nwere nnukwu-ọrụ mgbochi - imebi tankị corrosion iji megharia na gburugburu mpụta siri ike. A na-etinye ya n'ọtụtụ ebe na ọrụ nrụpụta ime obodo, obodo obibi, obere ụlọ ọrụ azụmahịa yana ọkụ mpaghara dịpụrụ adịpụ. Site na nhazi kọmpat, nrụnye okporo osisi kwụ ọtọ yana ogologo ndụ ọ na-arụ ọrụ, ọ na-enye ihe ngwọta nkesa ike dị irè na nke a pụrụ ịdabere na ya maka grids ịba uru zuru ụwa ọnụ.

1.2 Nkọwa nka na ụzụ

Ahịrị ike 100 kVA na ụdị nkọwa nkọwa na mpempe akwụkwọ data

1.3 Eserese

Ahịrị ike 100 kVA na eserese eserese na nha.

02 Nrụpụta

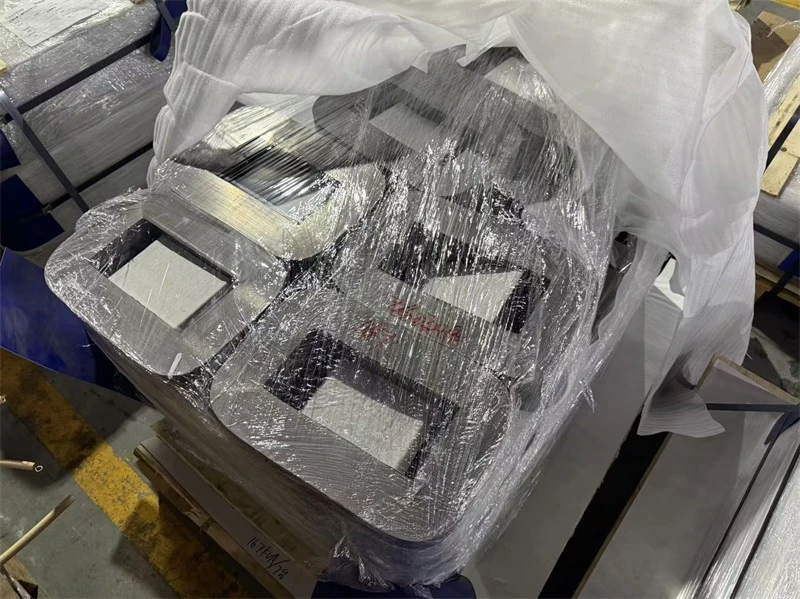

2.1 Isi

Isi ihe na-anakwere akwa mkpuchi silicon ígwè dị elu{0}}dị mma- Rolled oriented silicon steel design, nke na-ebelata nke ọma enweghị- ibu mfu yana enweghị- ibu ugbu a.

• Dakọtara ugboro ugboro 60Hz na 100kVA akwadoro ike;
• Ọ dịghị - ibu ọnwụ atụpụtara bụ 0.228kW (dị nnọọ mma karịa uru ekwenyere nke 0.263kW, n'ime +10% ndidi);
• Atụtara enweghị- ibu ugbu a bụ 0.45%, nwere mfu mkpali dị ala yana arụmọrụ magnetị kwụsiri ike, na-atọgbọ ntọala siri ike maka ịrụ ọrụ nke ọma na nke dị jụụ.

2.2 Ikuku

na-anabata a2-ikuku Ọdịdịsite n'ichepụta nke ọma yana njikwa oke ike, na-eme ka ngbanwe ike kwụsiri ike.

• Igwe ọkụ nke mbụ: 13.8kV, voltaji nke abụọ: 0.24 / 0.12kV;
• Otu vector: Ii0, polarity: Subtractive (ebelata polarity), na-emezu n'ụzọ zuru ezu ọkọlọtọ chọrọ;
• Ejiri ya± 2×2.5% NLTC (ọ dịghị - na-agbanwe ihe mgbata)(Gear 5), ngbanwe nke voltaji nke gia ọ bụla dị obere karịa ma ọ bụ nhata -0.09% (dị ala karịa oke ọkọlọtọ nke ihe na-erughị ma ọ bụ nhata 0.5%);
• A na-atụ nguzogide ikuku nke ọma, yana ụkpụrụ nkwụsi ike nke elu{0}voltaji na obere ikuku{1} voltaji na ngwa nke ọ bụla, yana ezigbo nkwụsi ike eletrik.

2.3 tank

Mmanụ -A na-eji ihe ike dị elu mee tankị ahụ e mikpuru, na-eji ezigbo akara, mkpọsa ọkụ na mgbochi ihu igwe n'èzí.

• Usoro nju oyi: ONAN (mmanụ ekesa ekesa, ikuku eke jụrụ oyi), dakọtara na ikpo ọkụ ọkụ chọrọ nke okporo osisi -n'ịkwado ọrụ;
• Gafere na20kPa ule ntapu nrụgide maka awa 12, enweghị ntapu na enweghị nrụrụ na-adịgide adịgide;
• Ike dielectric mmanụ mkpuchi mkpuchi bụ 63.45kV (dị elu karịa ọkọlọtọ achọrọ nke Greater karịa ma ọ bụ nha 45kV), yana ezigbo mkpuchi na arụmọrụ mbufe ọkụ.

2.4 Mgbakọ ikpeazụ

A na-eme mgbakọ ikpeazụ n'ụzọ siri ike na usoro IEEE C57.12.20, na-elekwasị anya na nhazi nhazi na ịdị mma nrụnye.

Mgbakọ jikọtara ọnụ nke isi, winding, mgbata na tankị, yana dabara nke ọma nke ihe niile;

polarity ahazigharịrị, oke mgbanwe, mkpirisi mkpirisi mkpirisi okirikiri na akara igodo ndị ọzọ tupu ebuga;

Otu {{0}osisi n'usoro - nhazi ihe arụrụ arụ, obere nha na ịdị arọ, dabara adaba maka nrụnye ngwa ngwa n'elu okporo osisi nkesa.

03 Nnwale

Emechara ule niile na-aga n'ihu dịka IEEE C57.12.90-2021 na ụkpụrụ CSA C802.1-13 (R2022), ihe niile tozuru oke, na ihe ngosi dị mma karịa ọkọlọtọ achọrọ.

• Nnwale a na-eme kwa oge: nguzogide ikuku, oke voltaji, polarity, enweghị-oke ibu/ibu, nguzogide mkpuchi, wdg;
• Iguzogide ule voltaji: ule voltaji etinyere (HV 34kV / 60s, LV 10kV / 60s), nnwale iguzogide voltaji (2Ur, 150Hz / 48s), enweghị ndakpọ voltaji;
• Usoro arụrụ arụ: mkpụmkpụ- 2.42% mkpirisi okirikiri, arụmọrụ 99.16%, mfu ibu 0.865kW, ha niile nọ n'usoro nnabata ọkọlọtọ.

04 Mbukota na mbupu

4.1 mbukota

Na-anabata nkwakọ ngwaahịa nchekwa pụrụ iche maka igwe mgbanaka okporo ụzọ-, nke emeziri nke ọma maka njem dị anya na nchekwa dị n'èzí.

• Mmiri{0}}ihe akaebe, ujo{1}ihe akaebe na mgbochi - imewe nkwakọba ihe iji kpuchido tankị, ahịhịa na mgbata mgbata;
• Nchekwa mkpuchi maka tank mmanụ na njikọ eletrik iji zere mmiri na ntinye uzuzu;
• Ejikọnyere akara aha ngwaahịa zuru oke, akụkọ nnwale na asambodo ntozu na nkwakọ ngwaahịa.

4.2 Mbupu

Na-ewere atụmatụ njem dị fechaa na kwụsiri ike dabara adaba maka ngwaahịa okporo osisi - agbakwunyere.

• Ihe owuwu kọmpat ahụ dabara adaba maka ibuli elu, njem ala na njem ụgbọ mmiri;
• A na-edozi ngwaahịa ahụ n'oge njem iji zere mbupụ na mmebi;
• A na-ebuga akwụkwọ ụlọ ọrụ zuru ezu na ngwongwo ahụ iji hụ na enwere ike itinye ngwaahịa ahụ ma jiri ya ozugbo ọ bịarutere.

05 Saịtị na nchịkọta

Site na mgbasawanye grid ime obodo ruo na ọkụ eletrik dịpụrụ adịpụ, igwe nrụnye n'otu akụkụ bụ ezigbo ahịrị n'elu - ọkụ, ịrụ ọrụ nke ọma na ọ dị mfe ịwụnye. Anyị na-enye ọkwa ọkọlọtọ ọkọlọtọ na nkwado nhazi nke mgbata voltaji iji hụ na nnyefe ngwa ngwa. Ọ bụrụ na ị na-achọ ihe ngwọta dị ọnụ ahịa, pịa"Nweta ntinye okwu"ma ọ bụ kpọọ anyị maka ịnye ọnụahịa kpọmkwem na ndụmọdụ nhọrọ.
